Oakworks 3000 Electric Medical Procedure Chair – ADA Low Height, 550 lb Capacity
The Oakworks 3000 Electric Medical Procedure Chair is designed for clinics and treatment settings that require precise patient positioning, reliable lift performance, and consistent support throughout the day. With a 550 lb weight capacity and a stable twin pedestal base, it provides a secure platform for a wide range of medical procedures.
The chair lowers to 19" to support ADA accessibility, making it easier for patients to get on and off the chair with minimal assistance. This is especially useful in practices serving patients with limited mobility.
All primary movements are electrically controlled, including height, backrest, leg section, and Trendelenburg positioning. A hand remote allows providers to adjust the chair during procedures, while programmable settings help reduce repositioning time between patients.
The twin pedestal base is designed to keep the chair stable during use while allowing clear access around the patient. This open design helps providers work more comfortably and maintain proper positioning during exams and treatments.

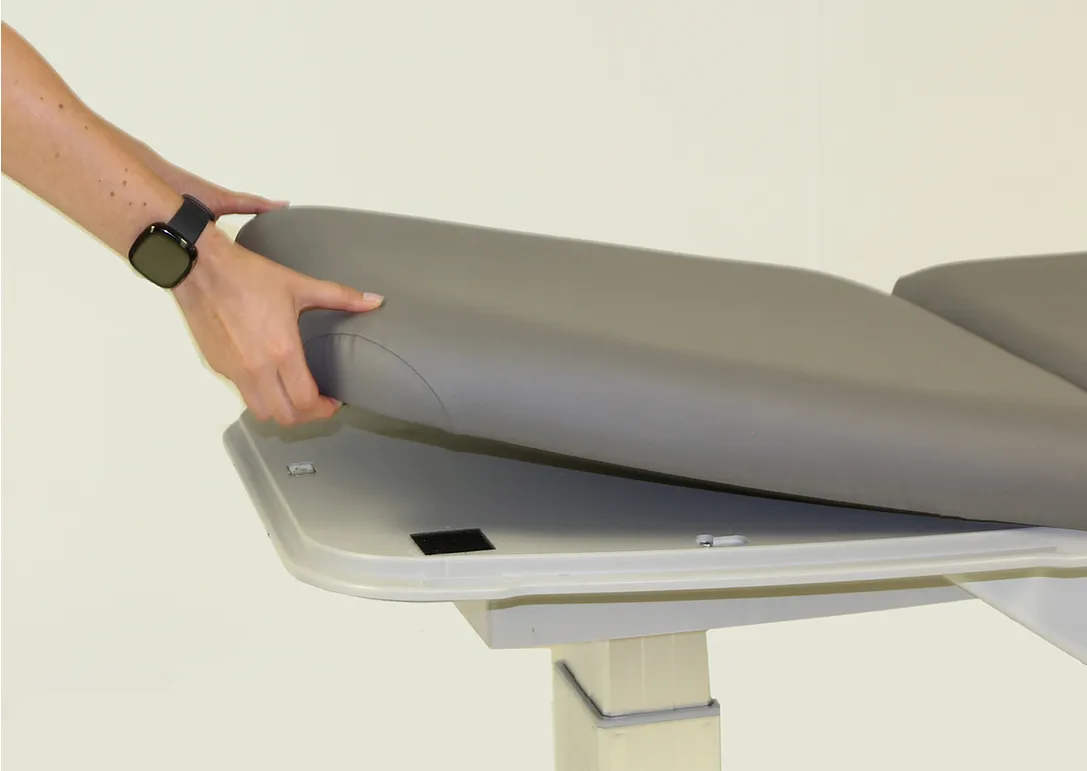

The upholstered surface includes 3" padding that extends to the edge of the frame, supporting patients in both seated and fully reclined positions. Cushions are removable, allowing for cleaning, replacement, or maintenance as needed in clinical environments.
The backrest hinge design allows the chair to shorten in seated positions and extend when flat, maximizing both space efficiency and patient support during different procedures.
An integrated mobility system allows the chair to be repositioned when needed. Locking casters engage and release using a base-mounted control, keeping the chair stable during use and movable when required.
Key Features
- 550 lb weight capacity for broad patient support
- 19" low height for ADA accessibility
- Electric adjustment for height, backrest, leg section, and tilt
- Programmable hand control for repeatable positioning
- Twin pedestal base for stability and provider access
- 3" padded surface with removable cushions
- Adjustable length depending on chair position
- Mobility system with locking casters
- FDA-listed Class I and ETL-listed
Clinical Applications
This procedure chair is used in medical and outpatient settings where powered positioning and patient access are important. Common applications include general exams, dermatology procedures, OB-GYN care, infusion therapy, rehabilitation, and outpatient treatments.
Usage Notes
Designed for professional use in clinical and treatment environments. ADA accessibility and powered positioning support efficient patient handling and workflow.
Specifications:
- Dimensions:
- Chair top: 61"L (with headrest, 76"L with platform extended) x 26"W
- Backrest: 25"L

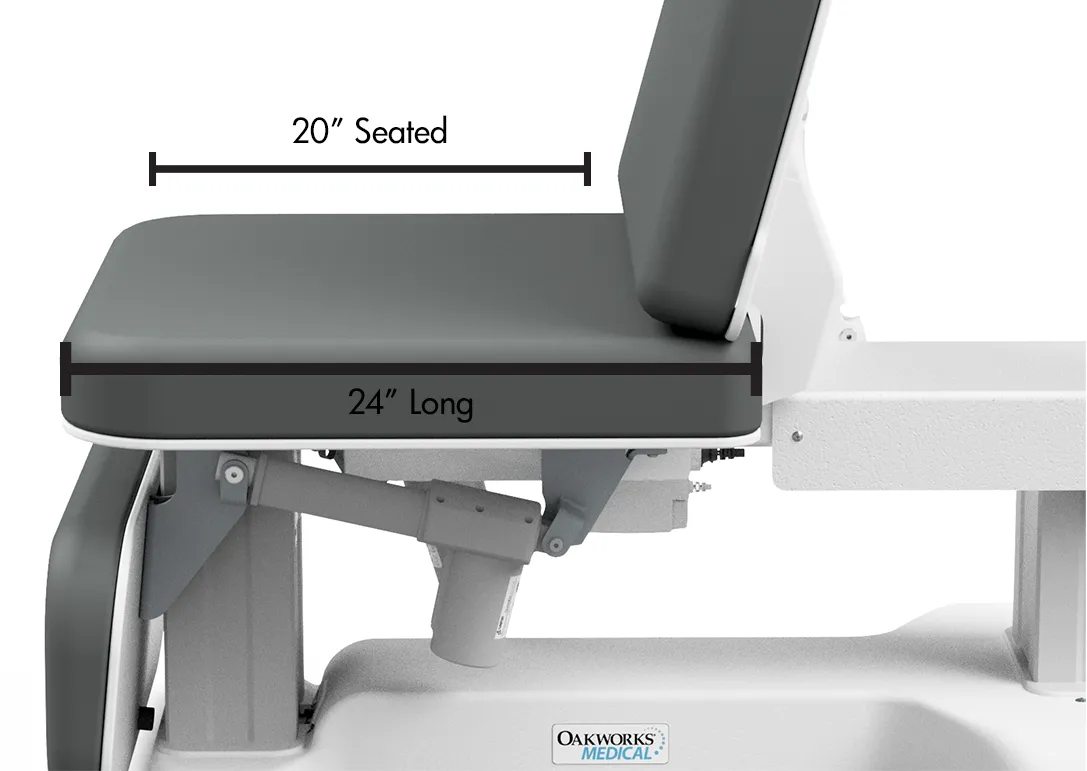

- Seat: 24"L
- Leg rest: 11"L
- Weight Capacity: 550 lb
- Power: 120V, 60hZ, 15 Amps
- Warranty: 3 years parts, 2 years labor
- Safety Listing: FDA listed, CE marked, cETLus approved, CB Certificate, CAN/CSA Std C22.2 No. 68-09, ANSI/AAMI 60601-1
Available Accessories:
Hand Control: Adjust Height, Leg & Backrest Trendelenburg/Reverse, two pre-programmed positions, and two programmable memory positions
- Motion 1 - Electric Height Range: 19in. - 33in. (48cm-84cm)
- Motion 2 - Electric Trendelenburg/Reverse Tilt: +15°/-21°
- Motion 3 - Electric Backrest: 0-75°
- Motion 4 - Electric Leg Rest: 0-90°
Available Upgrade Options:

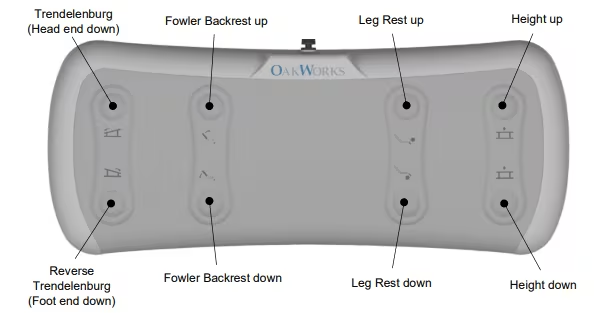

Foot Control: If your services require using your hands while operating the chair, order the foot remote control. Includes all functions available on the hand control.

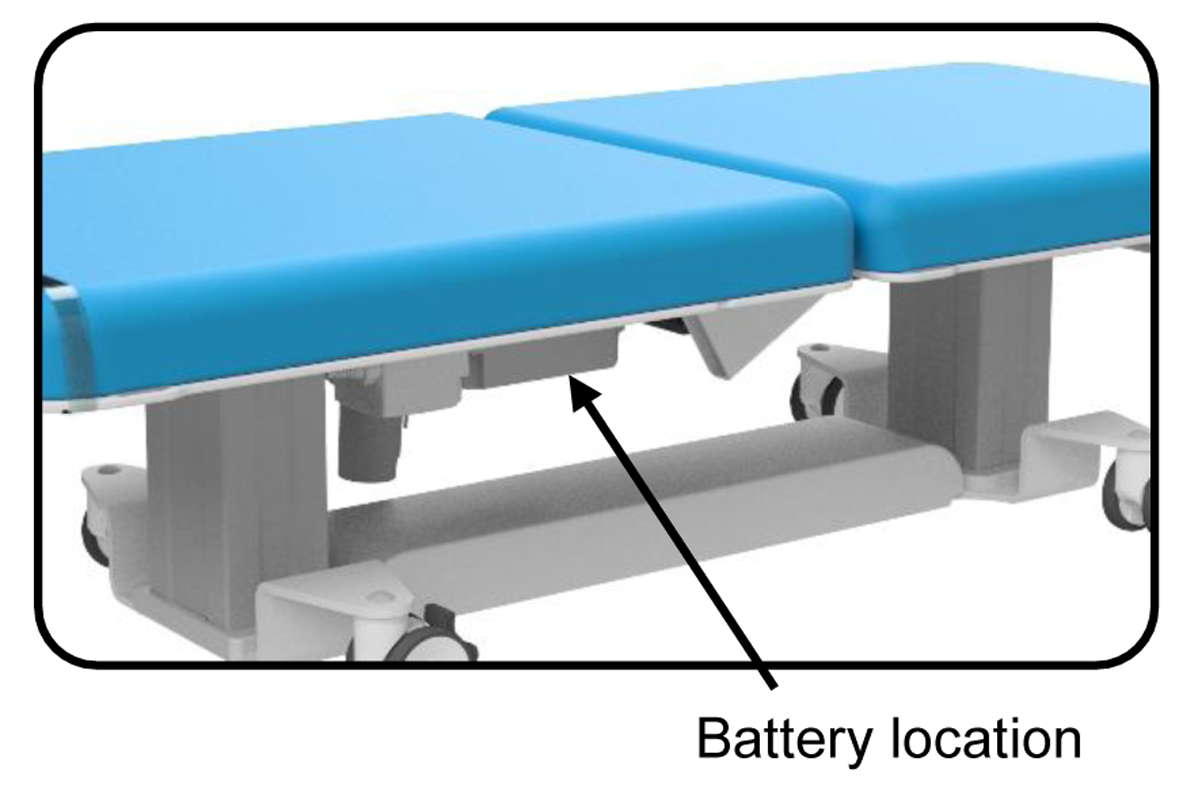

Battery Backup: Keep working if the power shuts down. Automatic backup.

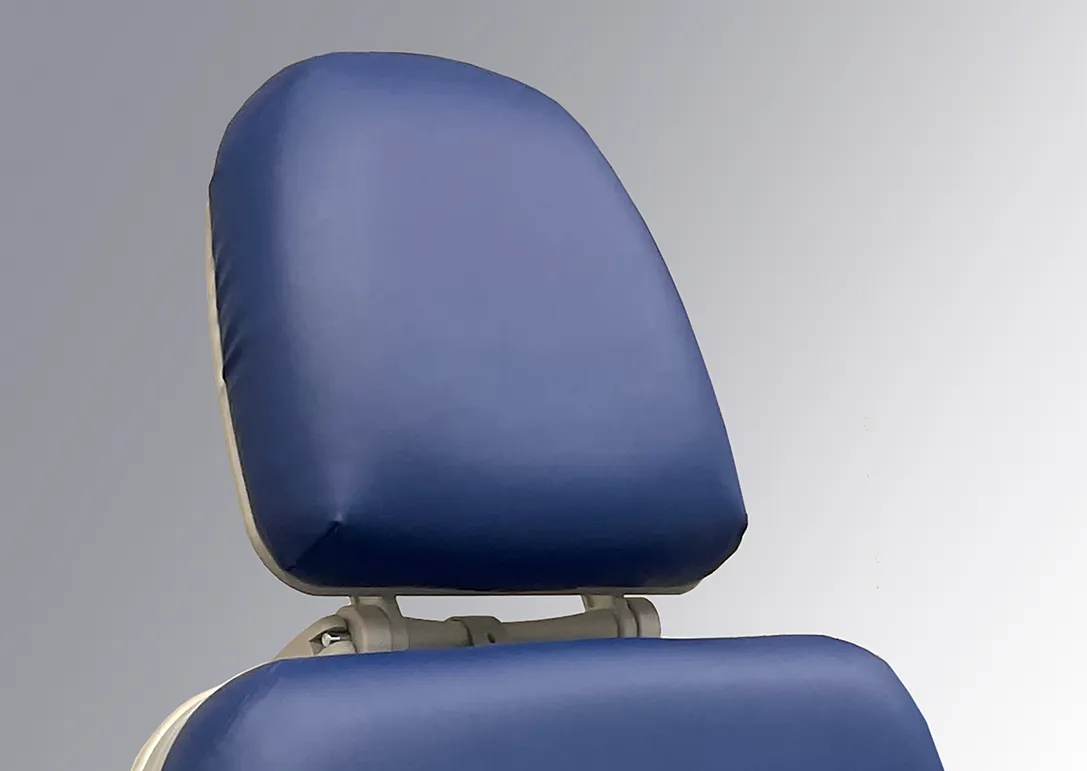

Supine Headrest System: The articulating headrest can also be raised and lowered to a comfortable height for each patient. The headrest can be angled, raised, or extended.
Quick Lock Face Cradle and Boiance Face Pillow: Virtually unlimited positioning through fast, simple adjustments, the Quick Lock Face Cradle fits all Oakworks tables with an 8" center alignment. The Boiance Face Pillow uses water spheres that allow the head to settle comfortably and alleviate sinus pressure. The perfect addition for prone treatment comfort.

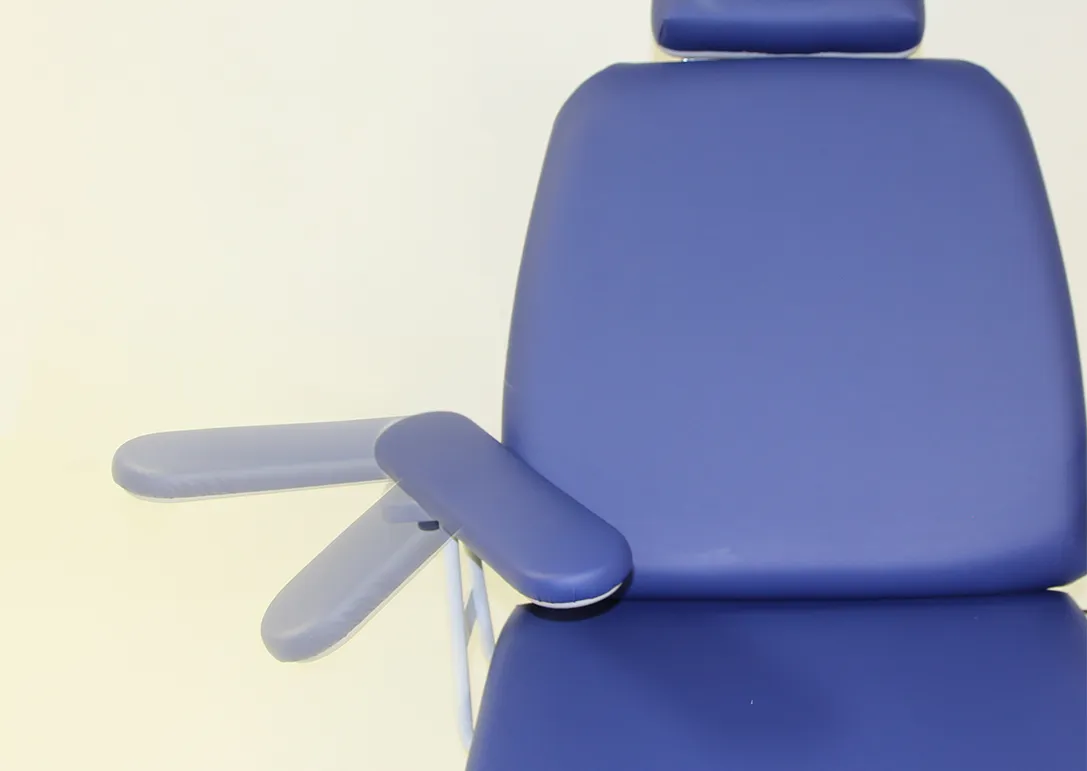

Arm Rests: Add a pair of armrests to the side of the chair. They fold down when not in use and can be rotated 180 degrees. This feature allows the provider to extend a patient’s arm laterally for procedures such as upper-extremity ultrasound exams, access to the antecubital fossa for IV insertion and dialysis, and minor surgical procedures on the arm. Please note that if you purchase only Armrests OR Side Rails, not both.

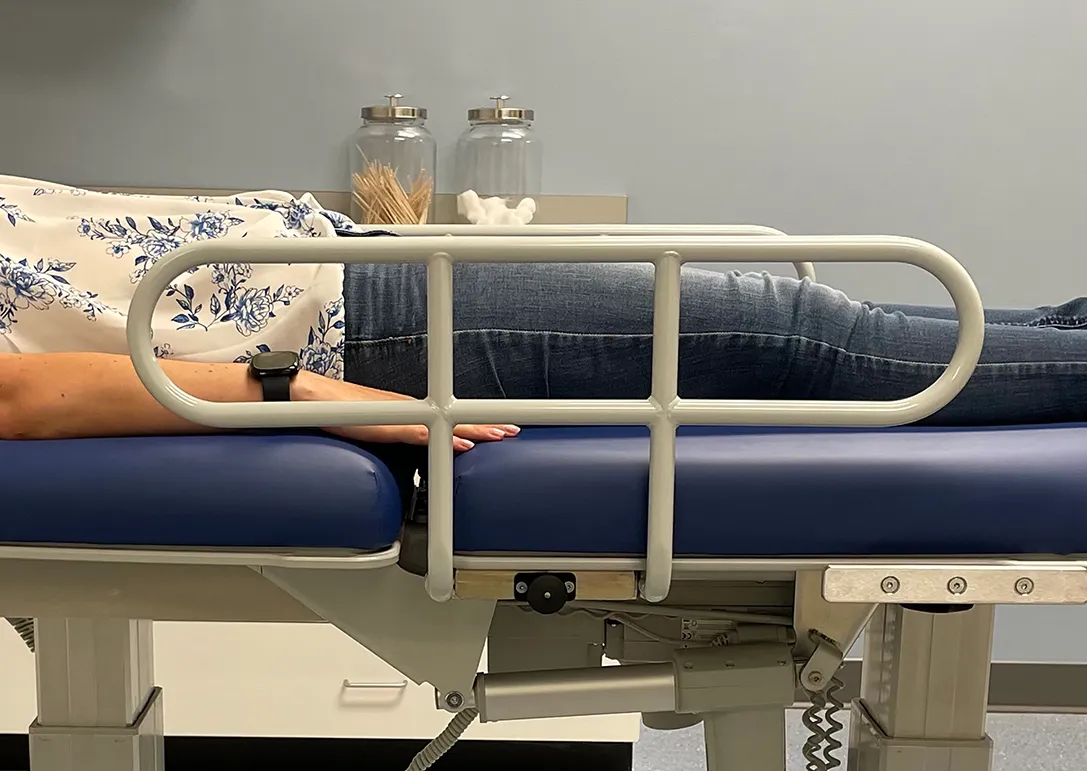

Side rails: Fold-back side rails do not restrict a provider’s access to the patient. Provides patient safety. Dimensions: 25.5"L x 6"H. Ships as a pair. Please note that if you purchase only Armrests OR Side Rails, not both.

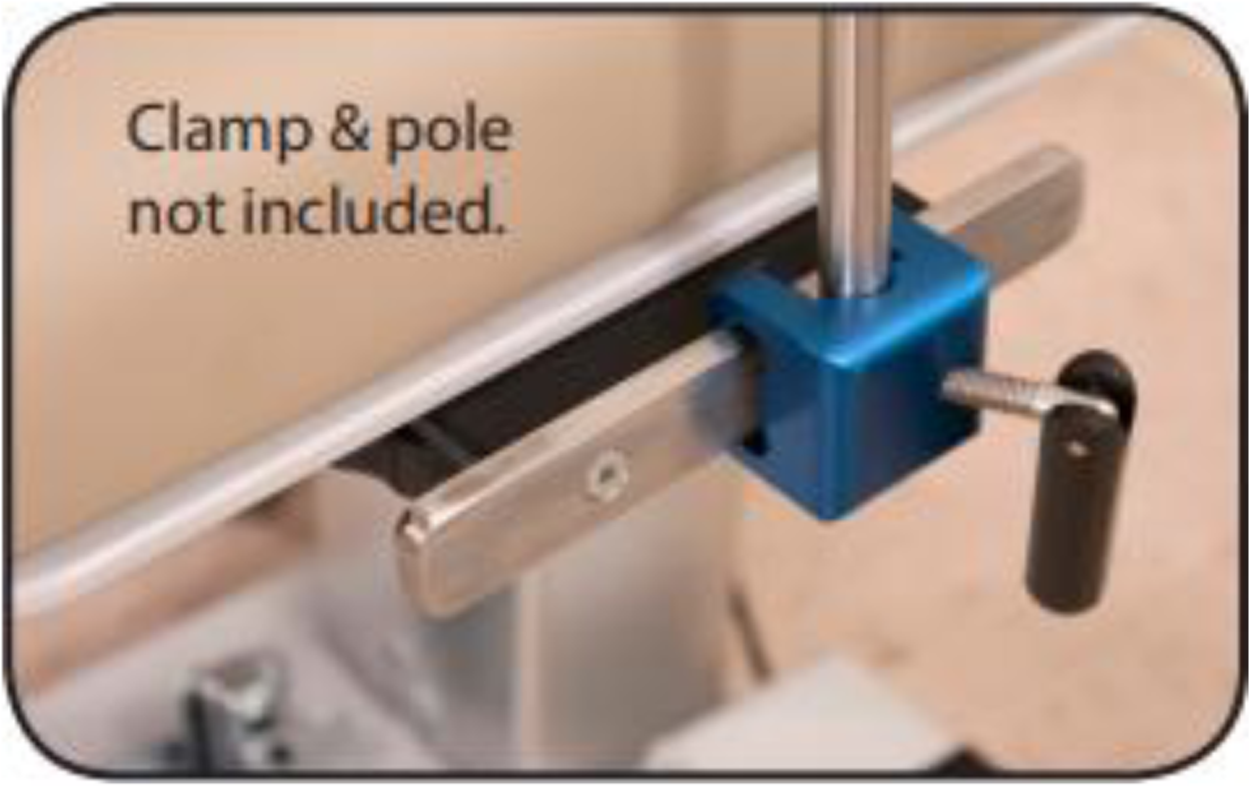

T-Rail Adapter: Add a T-rail Adapter to the chair at purchase to accommodate an IV pole or hang drain bags. Mounting locations for the T-rail adapter are at the end of the backrest and seat section of the chair.
Professional Rolling Stool:
- Simple pneumatic height adjustments from 20" to 28"
- 14" round swivel seat with 3" high-density padding covered in 100% PVC-free TerraTouch medical-grade upholstery
- 5-star, caster-wheeled, professional steel base gets you where you need to go
- Bump protector edge
