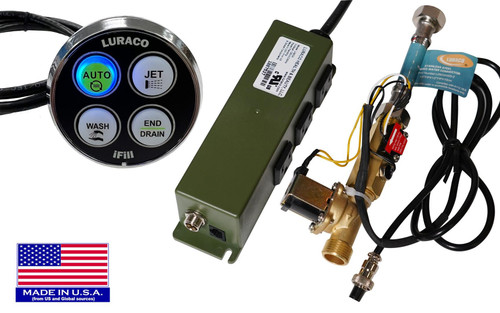

ANS Luraco iFill® 6 Pedicure Spa Auto-Fill & Overflow Control System

Smarter Filling for a Smoother Pedicure Service

Simplify pedicure basin filling with the Luraco iFill® 6 Spa Overflow Control System. This integrated controller automatically stops water flow when the preset fill volume is reached, helping prevent overfilling while making basin preparation more consistent. It also brings control of connected spa jets, lights, and a drain pump together through an easy-to-use backlit keypad.

Automatic Filling with Adjustable Volume

Set the fill volume from 1 to 10 gallons to suit your pedicure basin. The heavy-duty brass water valve and flow sensor measure incoming water and shut off the flow at the selected volume. No separate water-level sensor is required, allowing use with different tub materials and thicknesses.

Choose automatic filling for routine basin preparation or manual operation when you need direct control of water flow.

Convenient Control Throughout Each Service

• Backlit keypad: Easily access fill, jet, wash, and end/drain functions.
• Integrated spa controls: Operate connected jet pumps and lights with a single controller.
• Timed drainage: Dedicated drain-pump outlet with a 3-minute timer.
• Built-in timers: Includes a 1-hour safety timer and a 5-minute timer for manual wash operation.
• Liner compatible: Works with or without disposable pedicure basin liners.

Specifications

• Model: L0903A
• Fill-volume range: 1–10 gallons
• Outlets: Three switched outlets, one continuous outlet, and one timed drain-pump outlet
• Power: 120VAC/60Hz or 220VAC/50Hz
• Maximum load: 2 amps per outlet
• Safety recognition: UL Recognized
• Manufacturing: Made in the USA from US and global components
• Warranty: 1-year limited manufacturer warranty

Installation and operation: Follow the manufacturer’s installation instructions, including required backflow preventers on both hot and cold water lines. Completely drain the basin before starting a new automatic fill cycle.
