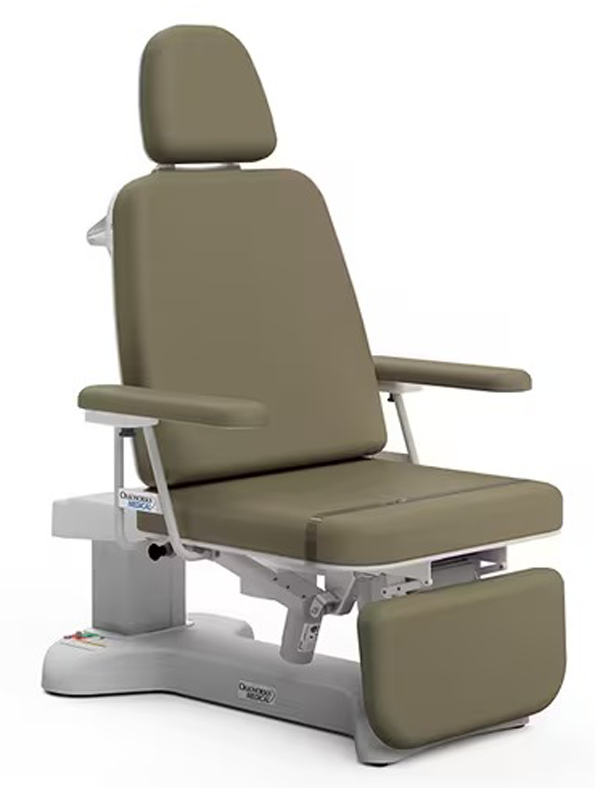

Oakworks 3050 Electric Medical Procedure Chair – ADA Low Height, 550 lb Capacity
The Oakworks 3050 Electric Medical Procedure Chair is designed for clinics and treatment settings that require precise patient positioning, reliable lift performance, and consistent support throughout the day. With a 550 lb weight capacity and a stable twin pedestal base, it provides a secure platform for a wide range of medical procedures.
The chair lowers to 19" to support ADA accessibility, making it easier for patients to get on and off the chair with minimal assistance. This is especially useful in practices serving patients with limited mobility.
All primary movements are electrically controlled, including height, backrest, leg section, and Trendelenburg positioning. A hand remote allows providers to adjust the chair during procedures, while programmable settings help reduce repositioning time between patients.
The twin pedestal base is designed to keep the chair stable during use while allowing clear access around the patient. This open design helps providers work more comfortably and maintain proper positioning during exams and treatments.
The upholstered surface includes 3" Comfort Foam™ padding that extends to the edge of the frame, supporting patients in both seated and fully reclined positions. Cushions are removable, allowing for cleaning, replacement, or maintenance as needed in clinical environments. TerraTouch™ (PVC-free medical-grade fabric) upholstery is selected for durability and cleanability in clinical environments.
The backrest hinge design allows the chair to shorten in seated positions and extend when flat, helping the chair fit smaller rooms while still providing full patient support when extended.
Advanced Positioning & Access Features
This configuration of the Oakworks 3000 includes additional positioning and access features that expand its use across a wider range of procedures. These components are designed to improve patient support while giving providers better access during treatment.
The Supine Headrest System includes an articulating platform and pad, allowing the head position to be raised, angled, or extended as needed during procedures. This added range helps maintain proper alignment during both seated and fully reclined positioning.
Fold-down armrests can be rotated up to 180°, making it easier to position the patient’s arms for procedures such as IV placement, injections, or upper extremity access. When not in use, the armrests fold out of the way to maintain a clear working area.
An electronic mobility system allows the chair to be moved when needed and secured in place during use. This is useful in multi-room or multi-purpose treatment environments where layout flexibility is important.
Key Features
- 550 lb weight capacity for broad patient support
- 19" low height for ADA accessibility
- Electric adjustment for height, backrest, leg section, and tilt
- Programmable hand control for repeatable positioning
- Twin pedestal base for stability and provider access
- 3" padded surface with removable cushions
- Adjustable length depending on chair position
- FDA-listed Class I and ETL-listed
- Supine headrest system with adjustable platform and pad
- Rotating armrests with a fold-down design for patient access
- Electronic mobility system with locking function
- Medical-grade upholstery is durable and easy to clean
Clinical Applications
This procedure chair is used in medical and outpatient settings where powered positioning and patient access are important. Common applications include general exams, dermatology procedures, OB-GYN care, infusion therapy, rehabilitation, and outpatient treatments.
Usage Notes
Designed for professional use in clinical and treatment environments. ADA accessibility and powered positioning support efficient patient handling and workflow.
3000 Series Procedure Chair Comparison Chart
Specifications:
- Dimensions:
- Chair top: 61"L (with headrest, 76"L with platform extended) x 26"W
- Backrest: 25"L
- Seat: 24"L
- Leg rest: 11"L
- Weight Capacity: 550 lb
- Power: 120V, 60hZ, 15 Amps
- Warranty: 3 years parts, 2 years labor
- Safety Listing: FDA listed, CE marked, cETLus approved, CB Certificate, CAN/CSA Std C22.2 No. 68-09, ANSI/AAMI 60601-1
Hand Control: Adjust Height, Leg & Backrest Trendelenburg/Reverse, two pre-programmed positions, and two programmable memory positions
- Motion 1 - Electric Height Range: 19in. - 33in. (48cm-84cm)
- Motion 2 - Electric Trendelenburg/Reverse Tilt: +15°/-21°
- Motion 3 - Electric Backrest: 0-75°
- Motion 4 - Electric Leg Rest: 0-90°
Available Upgrade Options:
Foot Control: If your services require using your hands while operating the chair, order the foot remote control. Includes all functions available on the hand control.
Battery Backup: Keep working if the power shuts down. Automatic backup.
Available Accessories:
Quick Lock Face Cradle and Boiance Face Pillow: Virtually unlimited positioning through fast, simple adjustments, the Quick Lock Face Cradle fits all Oakworks tables with an 8" center alignment. The Boiance Face Pillow uses water spheres that allow the head to settle comfortably and alleviate sinus pressure. The perfect addition for prone treatment comfort.
Oakworks Fitted Disposable Face Rest Covers provide a soft, absorbent, and hygienic barrier for your massage table face cradle. Designed with an elastic edge for a snug, secure fit, these single-use covers protect the face rest and ensure client comfort. Box of 50 covers. The Flat version is easily laid over the facerest without complication. 100 units per box.
T-Rail Adapter: Add a T-rail Adapter to the chair at purchase to accommodate an IV pole or hang drain bags. Mounting locations for the T-rail adapter are at the end of the backrest and seat section of the chair.
Professional Rolling Stool:
- Simple pneumatic height adjustments from 20" to 28"
- 14" round swivel seat with 3" high-density padding covered in 100% PVC-free TerraTouch medical-grade upholstery
- 5-star, caster-wheeled, professional steel base gets you where you need to go
- Bump protector edge
