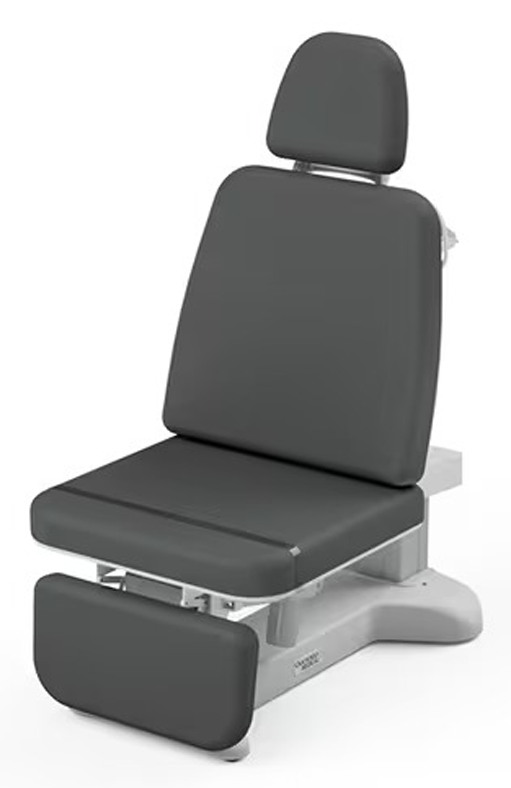

Oakworks 3000 Electric Medical Procedure Chair – ADA Low Height, 550 lb Capacity

The Oakworks 3000 Electric Medical Procedure Chair is designed for clinics that require precise patient positioning, ADA accessibility, and consistent performance across a wide range of procedures. With a 550 lb weight capacity and a stable twin-tower base, it provides dependable support for both standard- and higher-weight patients.

The chair lowers to 19", meeting ADA accessibility requirements and making patient entry and exit easier, particularly for individuals with limited mobility. A higher height range option (22"–36") is also available, depending on clinical preference.

All major functions are electrically controlled, including height, backrest, leg section, and Trendelenburg positioning. The hand control includes programmable memory positions, allowing providers to quickly return to commonly used setups and reduce adjustment time between patients.

The backrest hinge design allows the chair to shorten in seated positions and extend when flat, maximizing both space efficiency and patient support during different procedures.

The open base design improves access around the chair, giving providers more working space during exams and procedures. This is especially useful in settings where lateral access or equipment positioning is required.

The three-section top supports flexible patient positioning, with the backrest adjusting from 0–75° and the leg section from 0–90°. Trendelenburg and reverse tilt (+15° / -21°) allow for positioning adjustments used in a variety of medical and outpatient procedures.

The patient surface includes Comfort Foam™ padding designed to provide consistent support during longer procedures. TerraTouch™ (PVC-free medical-grade fabric) upholstery is selected for durability and cleanability in clinical environments.

Key Features

• 550 lb weight capacity for bariatric patient support
• ADA-compliant low height starting at 19"
• Electric adjustment for height, backrest, leg section, and tilt
• Trendelenburg and reverse tilt (+15° / -21°)
• Programmable hand control with memory positions
• Twin tower lift system provides an open base design for improved provider access
• Three-section top with flexible positioning
• 3" Comfort Foam™ padding with medical-grade upholstery options
• Backrest hinge design shortens the seat length when in a seat position, while increasing the support surface up to 76" while in the flat position
• Removable cushions for cleaning and maintenance

Clinical Applications

This procedure chair is used in medical and outpatient settings where powered positioning and patient accessibility are important. Common applications include general exams, dermatology procedures, OB-GYN care, infusion therapy, rehabilitation, and outpatient treatments.

Compliance & Safety

FDA listed, CE marked, cETLus approved, and CB certified. Designed for use by trained healthcare professionals in clinical environments.

Usage Notes

This chair is intended for professional medical use. Powered positioning and ADA accessibility features support efficient patient handling and workflow in modern treatment settings.

3000 Series Procedure Chair Comparison Chart

Specifications:

• Dimensions:
• Chair top: 61"L (with headrest, 76"L with platform extended) x 26"W
• Backrest: 25"L
• Seat: 24"L
• Leg rest: 11"L
• Weight Capacity: 550 lb
• Power: 120V, 60hZ, 15 Amps
• Trendelenburg: +15° / -21°
• Backrest Range: 0–75°
• Leg Rest Range: 0–90°
• Paper Roll Holder:  accommodates up to 18" roll
• Warranty: 3 years parts, 2 years labor
• Safety Listing: FDA listed, CE marked, cETLus approved, CB Certificate, CAN/CSA Std C22.2 No. 68-09, ANSI/AAMI 60601-1

Hand Control: Adjust Height, Leg & Backrest Trendelenburg/Reverse, two pre-programmed positions, and two programmable memory positions

• Motion 1 - Electric Height Range: 19in. - 33in. (48cm-84cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt: +15°/-21°
• Motion 3 - Electric Backrest: 0-75°
• Motion 4 - Electric Leg Rest: 0-90°

Available Upgrade Options:

Foot Control: If your services require using your hands while operating the chair, order the foot remote control.  Includes all functions available on the hand control.

Battery Backup: Keep working if the power shuts down.  Automatic backup.

Available Accessories:

Supine Headrest System: The articulating headrest can also be raised and lowered to a comfortable height for each patient.  The headrest can be angled, raised, or extended.

Quick Lock Face Cradle and Boiance Face Pillow: Virtually unlimited positioning through fast, simple adjustments, the Quick Lock Face Cradle fits all Oakworks tables with an 8" center alignment. The Boiance Face Pillow uses water spheres that allow the head to settle comfortably and alleviate sinus pressure.  The perfect addition for prone treatment comfort.

Oakworks Fitted Disposable Face Rest Covers provide a soft, absorbent, and hygienic barrier for your massage table face cradle. Designed with an elastic edge for a snug, secure fit, these single-use covers protect the face rest and ensure client comfort. Box of 50 covers.  The Flat version is easily laid over the facerest without complication.  100 units per box.

Arm Rests: Add a pair of armrests to the side of the chair.  They fold down when not in use and can be rotated 180 degrees.  This feature allows the provider to extend a patient’s arm laterally for procedures such as upper-extremity ultrasound exams, access to the antecubital fossa for IV insertion and dialysis, and minor surgical procedures on the arm.  Please note that if you purchase only Armrests OR Side Rails, not both.

Side rails: Fold-back side rails do not restrict a provider’s access to the patient. Provides patient safety.  Dimensions:  25.5"L x 6"H.  Ships as a pair. Please note that if you purchase only Armrests OR Side Rails, not both.

T-Rail Adapter: Add a T-rail Adapter to the chair at purchase to accommodate an IV pole or hang drain bags. Mounting locations for the T-rail adapter are at the end of the backrest and seat section of the chair.

Professional Rolling Stool:

• Simple pneumatic height adjustments from 20" to 28"
• 14" round swivel seat with 3" high-density padding covered in 100% PVC-free TerraTouch medical-grade upholstery
• 5-star, caster-wheeled, professional steel base gets you where you need to go
• Bump protector edge
