Tecnodent Linda Evo Electric Knee-Break Treatment Chair
The Tecnodent Linda Evo is a compact electric knee-break treatment chair for dental and medical environments. Its standard configuration includes synchronized backrest and legrest movement, a double-articulated Vale headrest, three programmable positions, a return-to-zero reset button, rinse positioning, low-voltage controls, and smooth soft-start and soft-stop movement.
Linda Evo is the latest development of Tecnodent’s longstanding Linda 3 platform. It preserves the compact footprint, clean lines, seated accessibility, and straightforward operation of the original knee-break concept while incorporating updated movement technology and a contemporary split-section design.
Designed for Seated Entry and Flexible Positioning

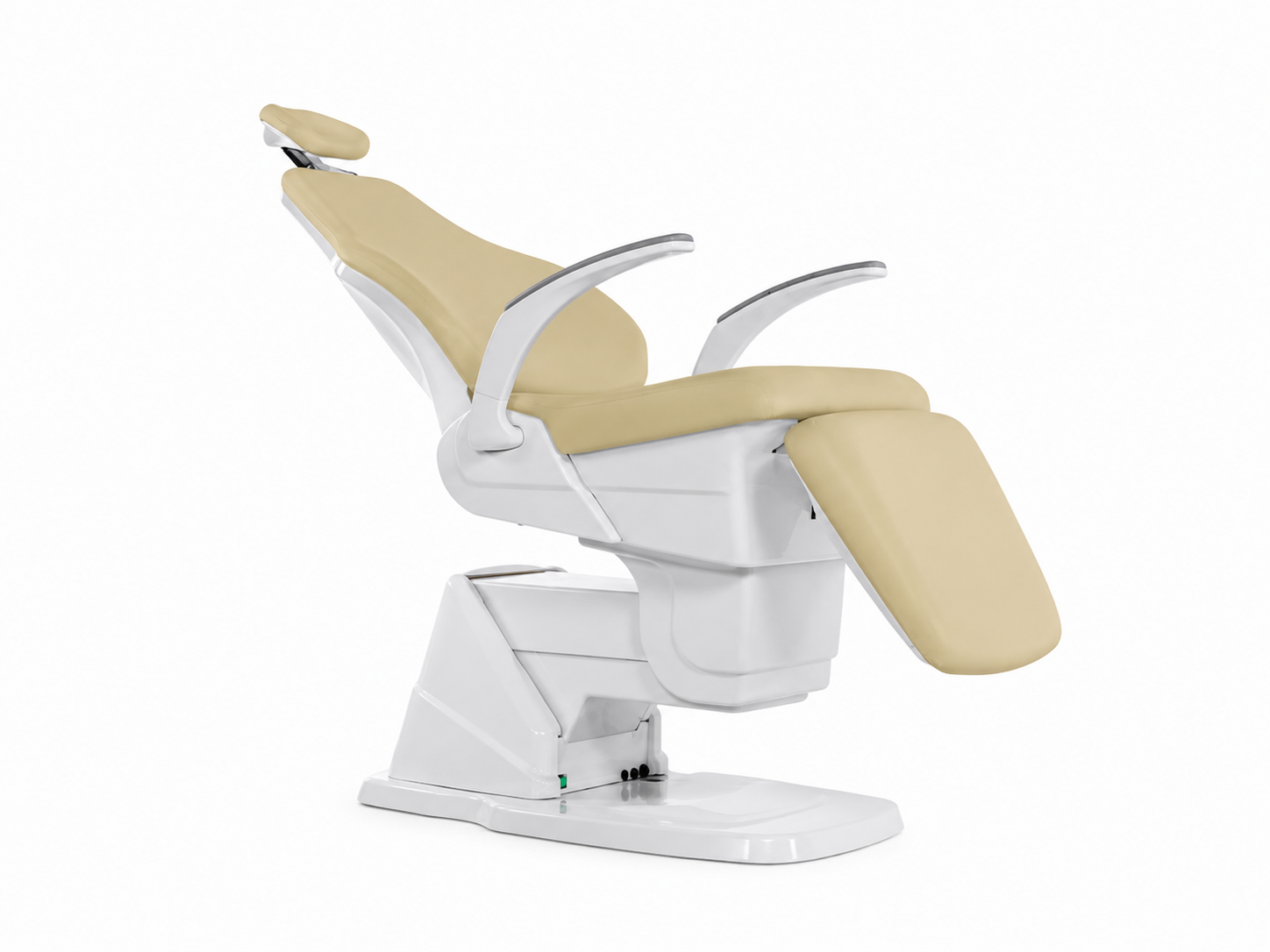

The Linda Evo begins as an upright treatment chair, allowing patients to approach and sit without first climbing onto a flat table. Its knee-break geometry supports convenient entry and can be particularly useful in practices serving children, older adults, and people who may have difficulty accessing a conventional treatment table.

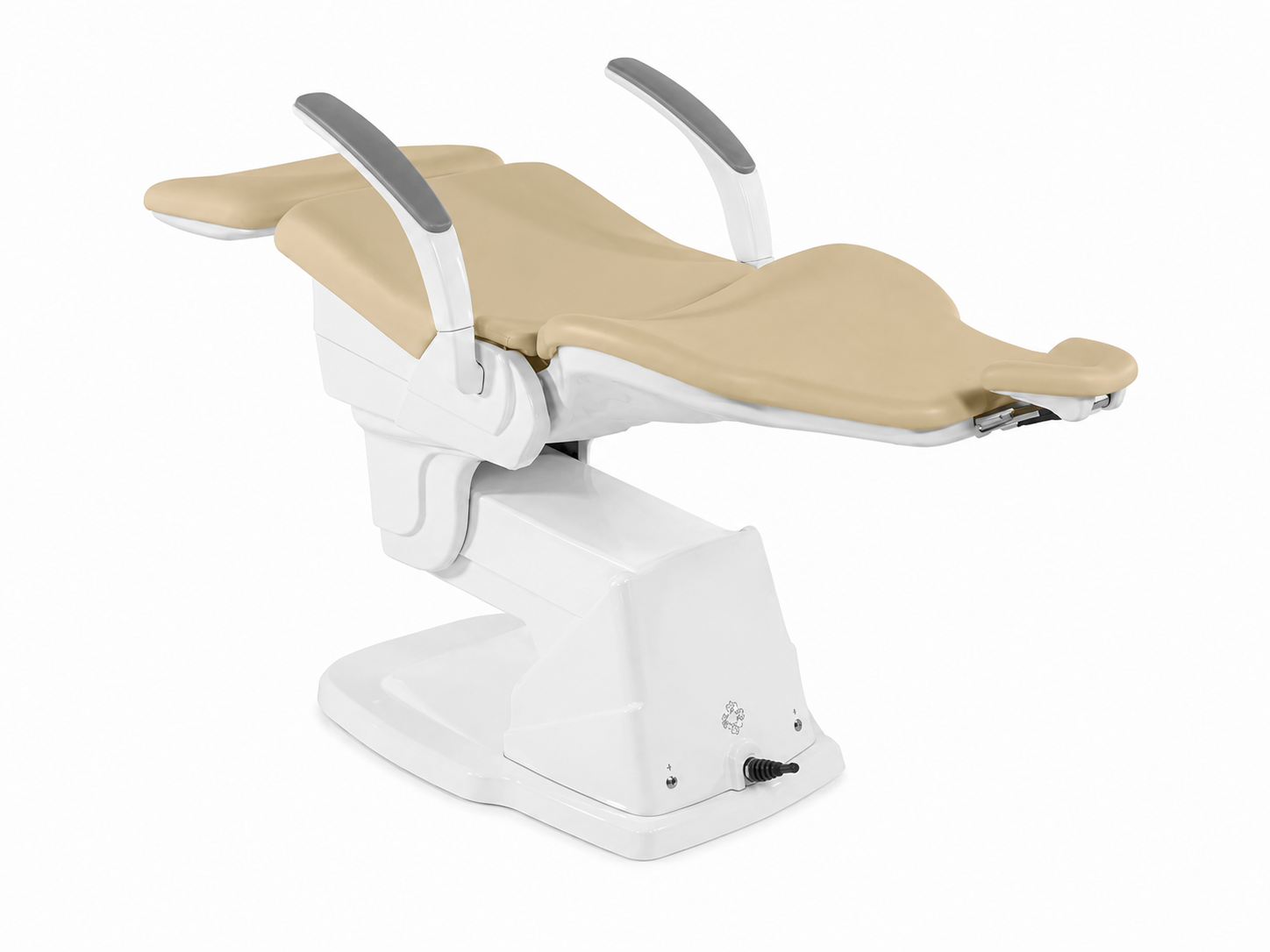

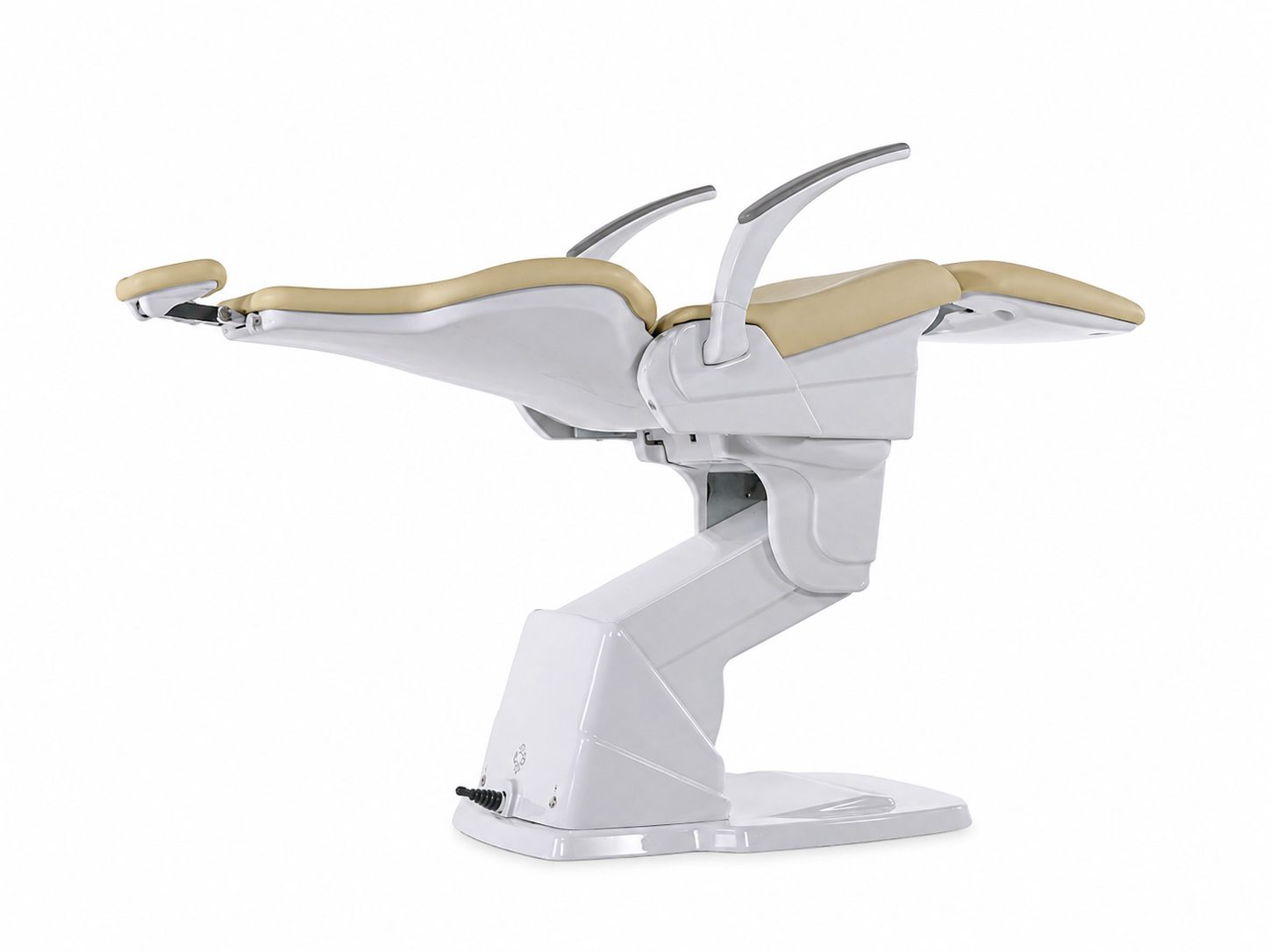

During recline, movement of the backrest is synchronized with extension of the legrest. The compensated backrest can move toward a horizontal treatment position while the seat adjusts through its tilt range, allowing the chair to transition from upright consultation seating to a reclined treatment platform.
Smooth, Controlled Electromechanical Movement
Powered upward, downward, and backrest movements are controlled from a joystick located on the chair base. Low-voltage controls, Hall-sensor limit switches, and soft-start and soft-stop operation support smooth transitions and controlled final positioning.
Safety stops are incorporated at the backrest and lifting arm. The chair’s symmetrical design allows it to be arranged for either right- or left-handed clinical workflows without requiring a specific treatment-room orientation.
Programmable Workflow Positions
Three customized working positions can be stored for frequently used chair settings. A zero program returns the chair to its lowered patient-entry position, while the automatic rinse program raises the patient and then returns the chair to the last working position.

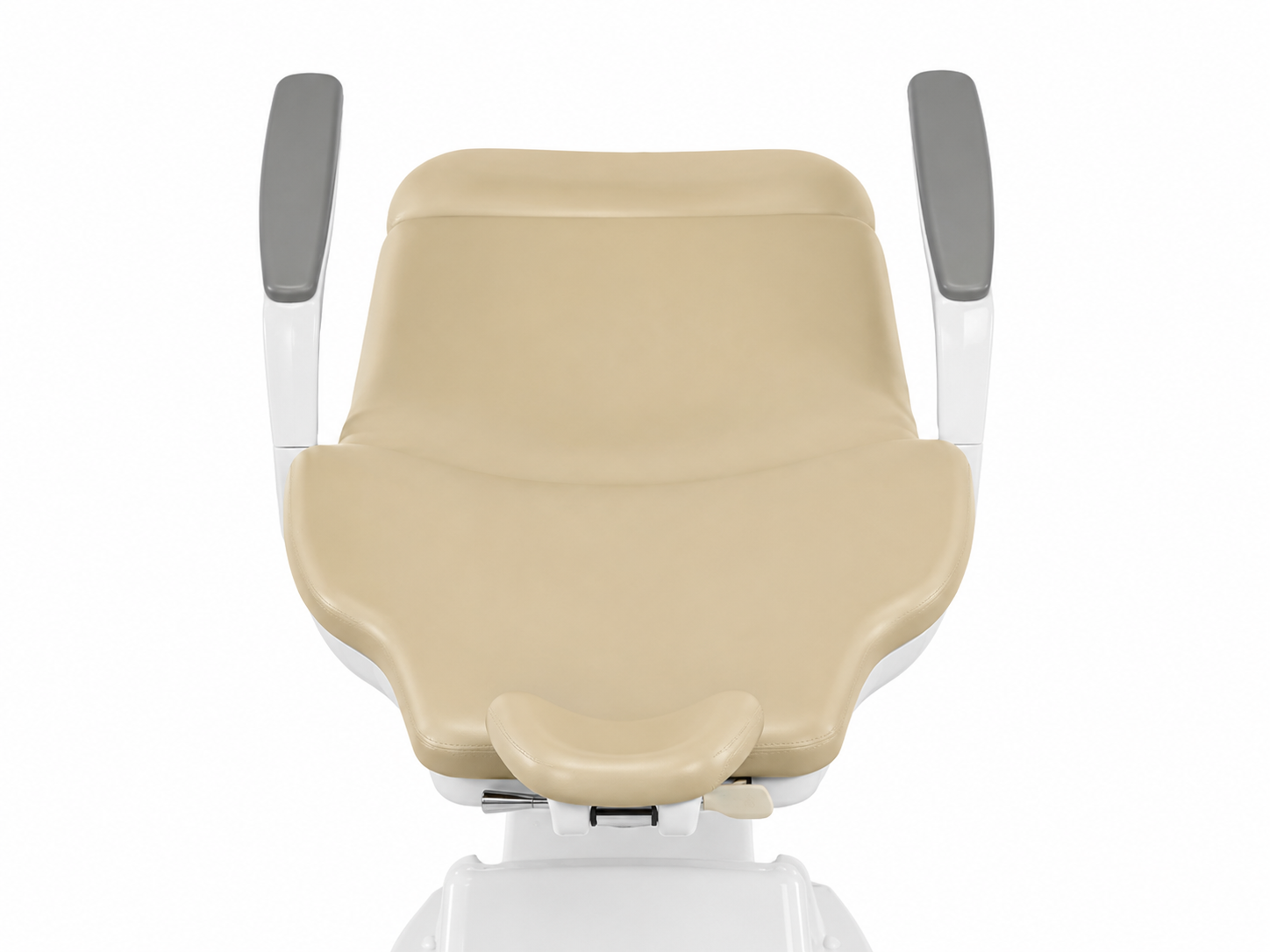

The high, enveloping backrest and standard double-articulated Vale headrest provide adjustable support in both upright and reclined positions. Split-section upholstery contributes to the chair’s compact knee-break movement and contemporary appearance.
Standard Features
- Electric positioning: Powered upward, downward, and backrest movement
- Compensated recline: Backrest movement toward a horizontal treatment position
- Knee-break function: Backrest movement synchronized with legrest extension
- Position memory: Three user-programmable working positions
- Zero program: Automatic return to the lowered patient-entry position
- Rinse program: Upright transition with return to the last working position
- Control: Base-mounted joystick
- Control voltage: Low-voltage 5V controls
- Movement quality: Soft-start and soft-stop operation
- Backrest: High, enveloping anatomical design
- Headrest: Double-articulated Vale headrest
- Room flexibility: Symmetrical layout for right- or left-handed professionals
- Safety: Safety stops on the backrest and lifting arm
- Upholstery design: Contemporary split-section patient surface
Recommended Professional Uses
The Linda Evo is well-suited to dental examinations, hygiene appointments, consultations, whitening services, digital dentistry, general medical examinations, dermatology, aesthetic treatment rooms, and multi-purpose practices that want compact seated entry with powered transition into a reclined working position.
Technical Specifications
- Height range: 21.7” to 34.6” (550 to 880 mm)
- Width: 24.2” (615 mm)
- Overall length: 68.9” (1750 mm)
- Backrest tilt range: 0° to 76°
- Seat tilt range: +7° to +18°
- Trendelenburg angle: Up to +18°
- Net weight: Approximately 176 lbs. (80 kg)
- Gross weight: Approximately 243 lbs. (110 kg)
- Maximum combined lifting capability: 463 lbs. (210 kg), including the patient and connected equipment
Upholstery Options:
About Tecnodent
Founded in Italy in 1966, Tecnodent designs and manufactures ergonomic dental and medical seating for professional treatment environments. Through its Tecnocare division, the company develops treatment chairs, examination tables, and operator stools with an emphasis on clinician access, patient comfort, hygiene, dependable engineering, and contemporary Italian design. Tecnodent combines traditional craftsmanship with modern production methods, polyurethane expertise, and multi-stage quality control.
The Tecnodent Linda Evo is intended for use in professional dental and medical treatment environments.
Available Upgrade Options

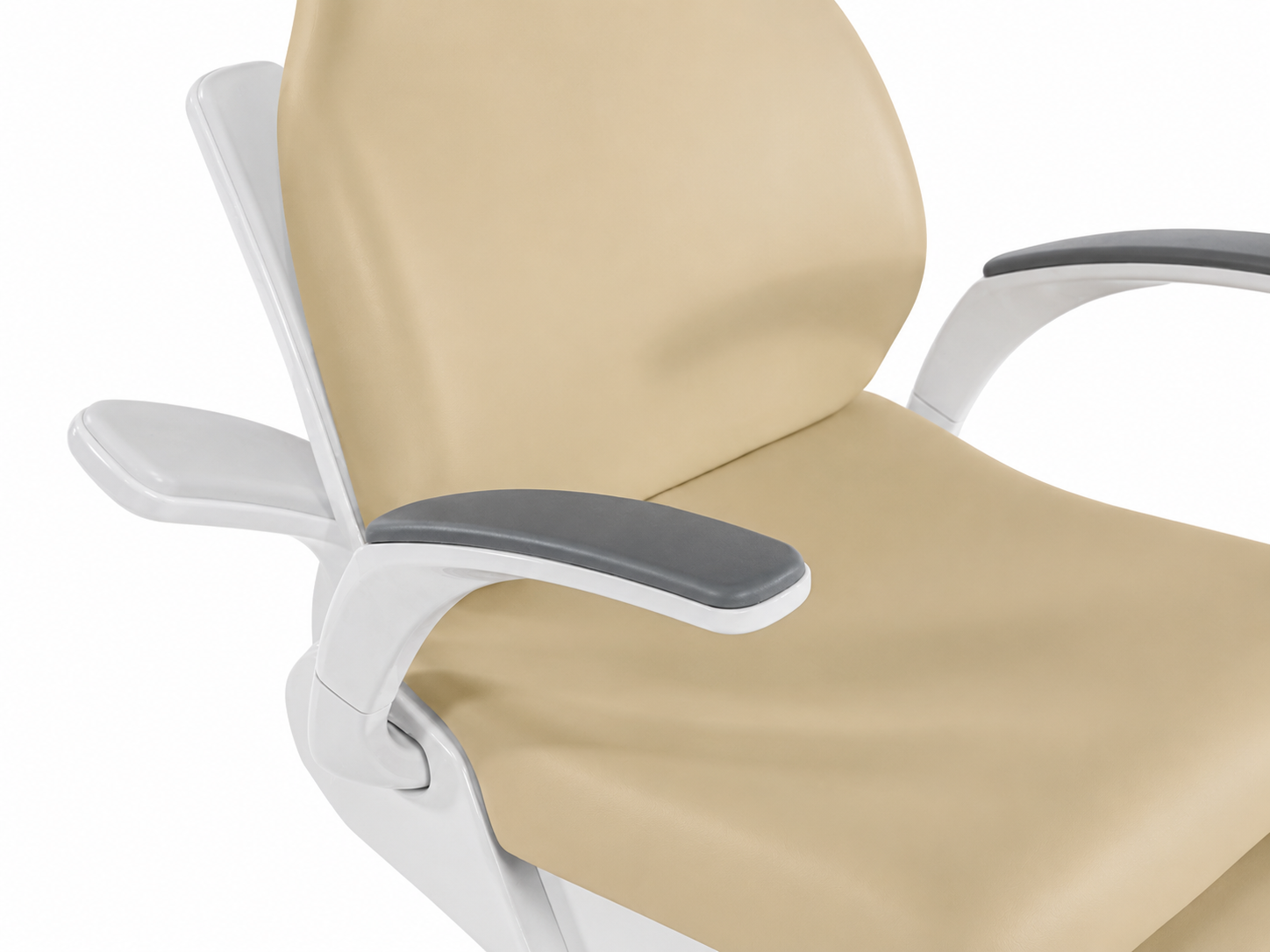

Rotating Armrests – Add one or both optional rotating armrests to provide additional support during chair entry and exit while giving the operatory a more finished, patient-friendly appearance. The rotating design swings out of the way when extra access is needed and returns easily when support is desired.

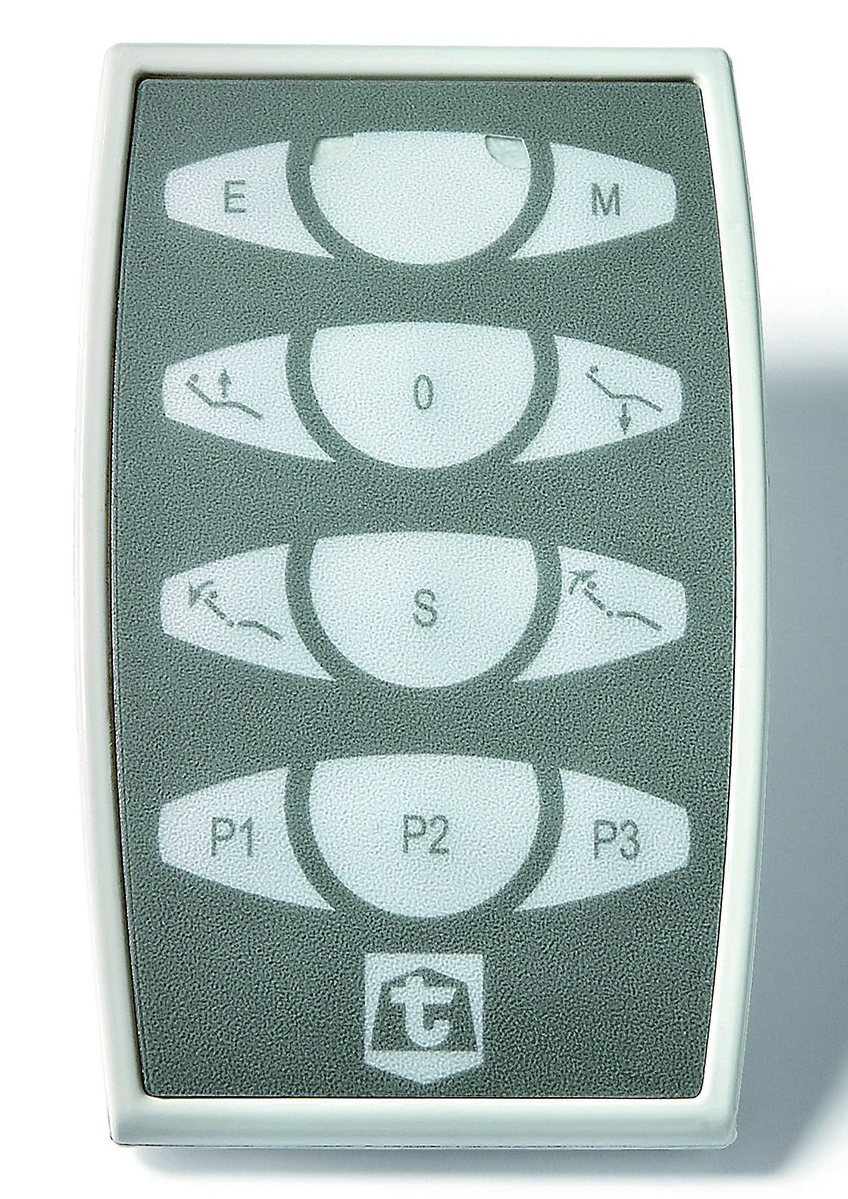

Infrared Remote Control – Position the chair from virtually anywhere around the operatory with a convenient wireless remote. Store and recall programmed positions at the touch of a button, or combine the remote with the joystick for maximum operating flexibility.
Available Accessories

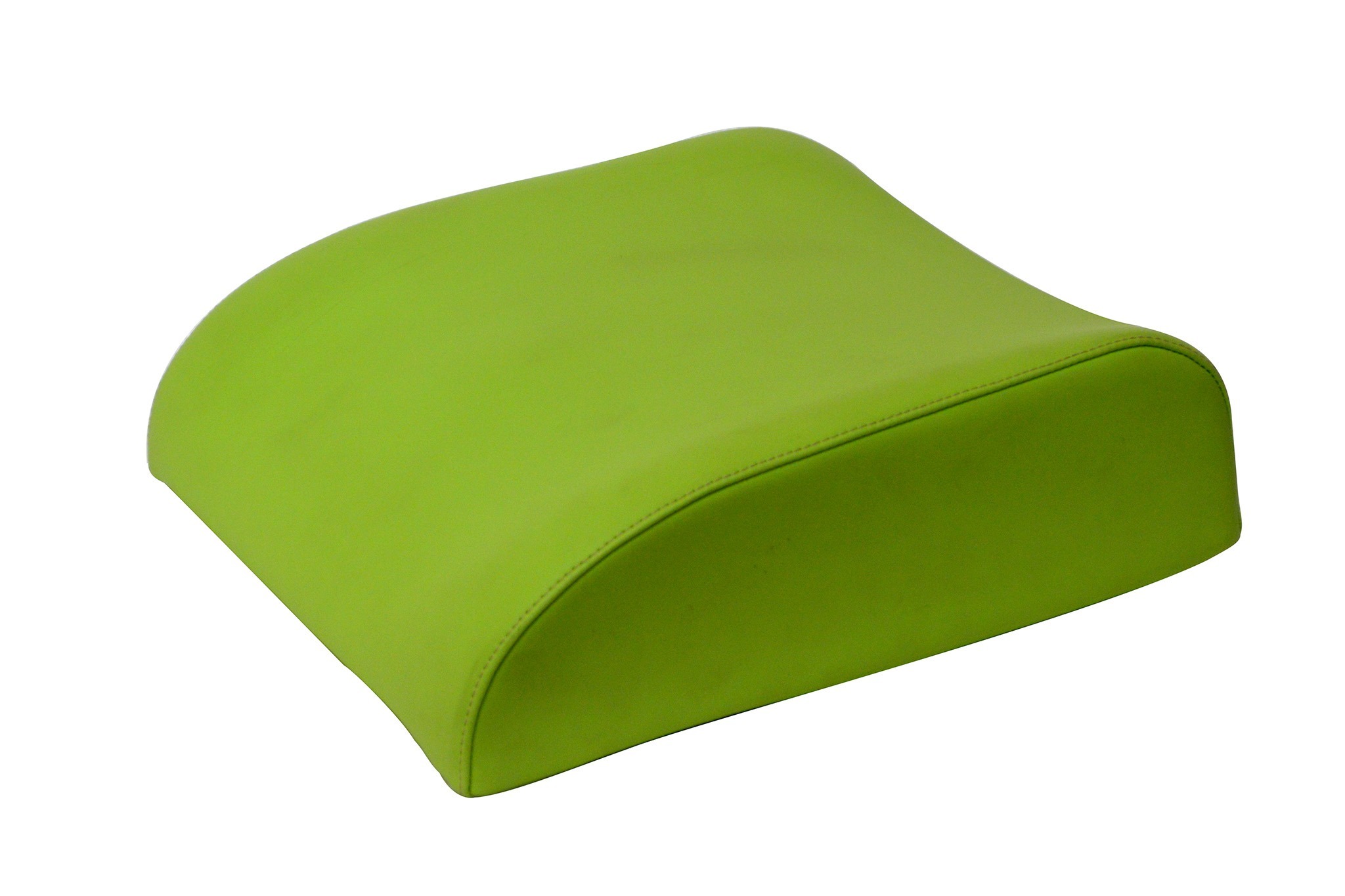

Children's Booster Cushion – Improve seating height for younger visitors with a custom-fit booster cushion upholstered to match your selected chair color. Designed specifically for the Tecnodent Vale, it integrates seamlessly with the chair while maintaining a coordinated professional appearance.
Pair this treatment chair with the Tecnodent Pluto Ergonomic Saddle Stool for coordinated Italian design and adjustable operator seating. The contoured saddle seat supports an open working posture, while adjustable height, seat tilt, and independent backrest positioning help dentists, medical providers, and aesthetic professionals remain comfortably positioned near the patient. High-density memory foam, seamless upholstery, and a smooth five-caster base make the Pluto a practical addition to a busy professional treatment room. Stool sold separately.
