Tecnodent Linda Next Electric Knee-Break Treatment Chair
The Tecnodent Linda Next is an electric knee-break treatment chair designed for dental and medical environments. Its standard configuration combines synchronized backrest and leg movement, an automatic, extendable foot section, independent Trendelenburg positioning, nine programmable working positions, Slow Mode, and a maximum combined lifting capacity of 661 lbs.
Linda Next is the contemporary evolution of Tecnodent’s original Linda chair platform, first introduced in 1978. It retains the compact profile, seated accessibility, and straightforward operation associated with Tecnodent’s knee-break design while adding modern positioning programs, molded construction, and a high-capacity lifting system.
Accessible Knee-Break Design
The knee-break format allows the chair to remain compact and upright for patient entry, consultations, and examinations. As the chair moves into a reclined treatment position, the backrest and leg section move in synchronization, and the polyurethane foot section extends automatically to provide additional lower-leg support.
This movement pattern allows the Linda Next to transition between an upright chair, reclined treatment position, and flat table position without requiring the patient to climb onto a conventional fixed treatment table.
Nine Programmable Positions and Automatic Programs
Three operator profiles are provided, each with three programmable working positions. This provides up to 9 stored treatment positions for different providers or procedure types.
Built-in positioning programs include table, Trendelenburg, rinse, last, and zero positions. Independent Trendelenburg movement provides additional positioning flexibility, while the rinse and last-position functions help return the chair to the prior working position after an upright patient transition.
Slow Mode supports small, controlled position changes when more precise movement is needed. The integrated foot-operated joystick allows the chair to be adjusted without occupying the provider’s hands.
High-Capacity Construction
The Linda Next uses 24V DC linear actuators with soft-start and soft-stop movement. Reaction Injection Molding, or RIM, is used in its construction to combine structural strength, flexibility, and clean contemporary lines.
Wide, wrapping molded upholstery supports the patient while maintaining a relatively slim overall profile. Safety stops are incorporated at the backrest, leg section, and controls, and the chair’s symmetrical layout supports both right- and left-handed clinical workflows.
Standard Features
- Electric movement: Powered lifting, lowering, and backrest adjustment
- Knee-break positioning: Synchronized backrest and leg-section movement
- Foot support: Automatically extending polyurethane foot section
- Trendelenburg: Independent Trendelenburg movement
- Automatic programs: Table, Trendelenburg, rinse, last, and zero positions
- Position memory: Three operator profiles with three programmable positions each
- Precision movement: Slow Mode for fine positioning adjustments
- Control: Integrated foot-operated joystick
- Actuators: 24V DC linear actuators
- Movement quality: Soft-start and soft-stop operation
- Headrest: Double-articulated Vale headrest
- Upholstery: Standard molded upholstery with a smooth, wrapping profile
- Workflow flexibility: Symmetrical design for right- or left-handed professionals
- Safety: Safety stops on the backrest, leg section, and controls
- Standard finish: RAL 9003 white
Recommended Professional Uses
The Linda Next is suited to dental examinations, hygiene appointments, digital dentistry, consultations, cosmetic and restorative workflows, general medical examinations, dermatology rooms, aesthetic treatment rooms, and multi-specialty practices that benefit from seated entry and powered transition into reclined or table positions.
Technical Specifications
- Height range: 19.7” to 34.4” (500 to 875 mm)
- Width: 24.8” (630 mm)
- Overall length: 78.7” (2000 mm)
- Backrest height adjustment: 2.4” (60 mm)
- Backrest tilt range: 0° to 90°
- Trendelenburg angle: 21.5°
- Lifting speed: Approximately 0.87” per second (22 mm/sec)
- Net weight: Approximately 309 lbs. (140 kg)
- Maximum combined lifting capability: 661 lbs. (300 kg), including the patient and connected equipment
Upholstery Options:
About Tecnodent
Founded in Italy in 1966, Tecnodent designs and manufactures ergonomic dental and medical seating for professional treatment environments. Through its Tecnocare division, the company develops treatment chairs, examination tables, and operator stools with an emphasis on clinician access, patient comfort, hygiene, dependable engineering, and contemporary Italian design. Tecnodent combines traditional craftsmanship with modern production methods, polyurethane expertise, and multi-stage quality control.
The Tecnodent Linda Next is intended for use in professional dental and medical treatment environments.
Available Accessories

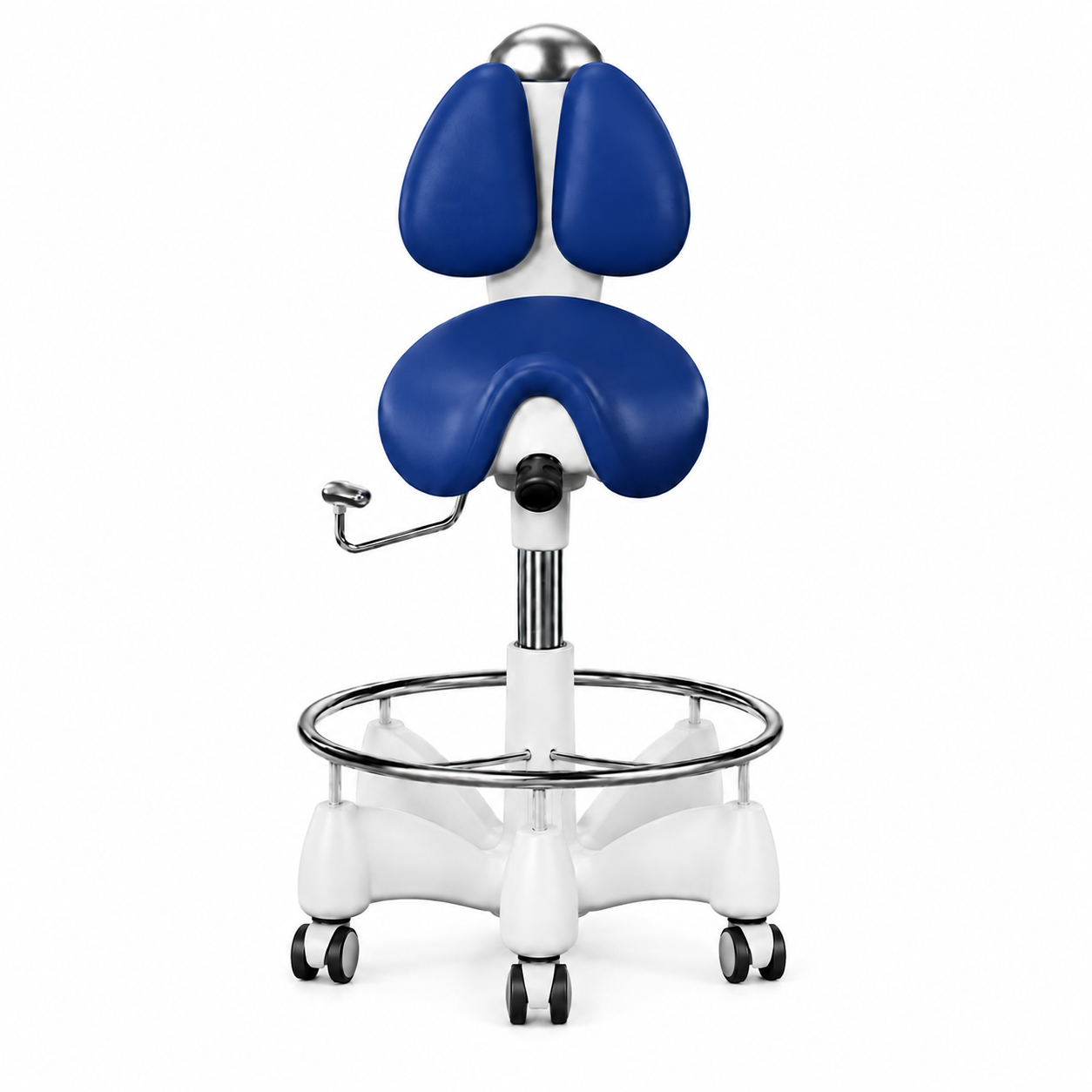

Pair this treatment chair with the Tecnodent Pluto Ergonomic Saddle Stool for coordinated Italian design and adjustable operator seating. The contoured saddle seat supports an open working posture, while adjustable height, seat tilt, and independent backrest positioning help dentists, medical providers, and aesthetic professionals remain comfortably positioned near the patient. High-density memory foam, seamless upholstery, and a smooth five-caster base make the Pluto a practical addition to a busy professional treatment room. Stool sold separately.
